Waterproof Solar Photovoltaic Combiner Box with Circuit Breaker & Protector - 2 Installation Options for Solar Panel Systems | Ideal for Residential & Commercial Solar Energy Projects
Free shipping on all orders over $50
7-15 days international
15 people viewing this product right now!
30-day free returns
Secure checkout
76312723
Description
Photovoltaic Combiner Box, Waterproof Solar Photovoltaic Combiner Box with Circuit Breaker and Protector, 2 Installation, Circuit Breaker Panels Flexible Installation Options: Surge protection combiner box offers two installation methods – either through solar connectors for a quick and secure attachment to solar panels, or direct wiring using waterproof connectors and terminals, providing adaptability to various installation scenarios. Solar Applications: Photovoltaic combiner box is suitable for deployment in both grid-connected and off-grid photovoltaic systems, including solar power setups, photovoltaic arrays, and RV solar solutions, making it a versatile component for diverse solar energy configurations. Integrated Circuit Breaker with Advanced Components: The PV combiner box incorporates a DC500V 32A 2P circuit breaker, featuring a flame-retardant casing, silver contacts, and copper coils, which collectively ensure superior electrical performance and safety. Spec: Item Type: PV Combiner Box Material: PC Flame Retardant, Silver, Red Copper Waterproof Grade: IP65 Circuit Breaker Information: Rated Current: 32A Rated Voltage: DC500V Icu: 6KA Protector Information: In: 20KA Imax: 40KA Uc: DC500V Up: ≤2KV How to Use: Refer to the wiring diagram for use. packing list: 1 x PV Combiner Box 4 x Screw 4 x Anchor 4 x Connector (2 Male 2 Female Connector) 4 x Connector Core 1 x Photovoltaic Special Wrench
Features

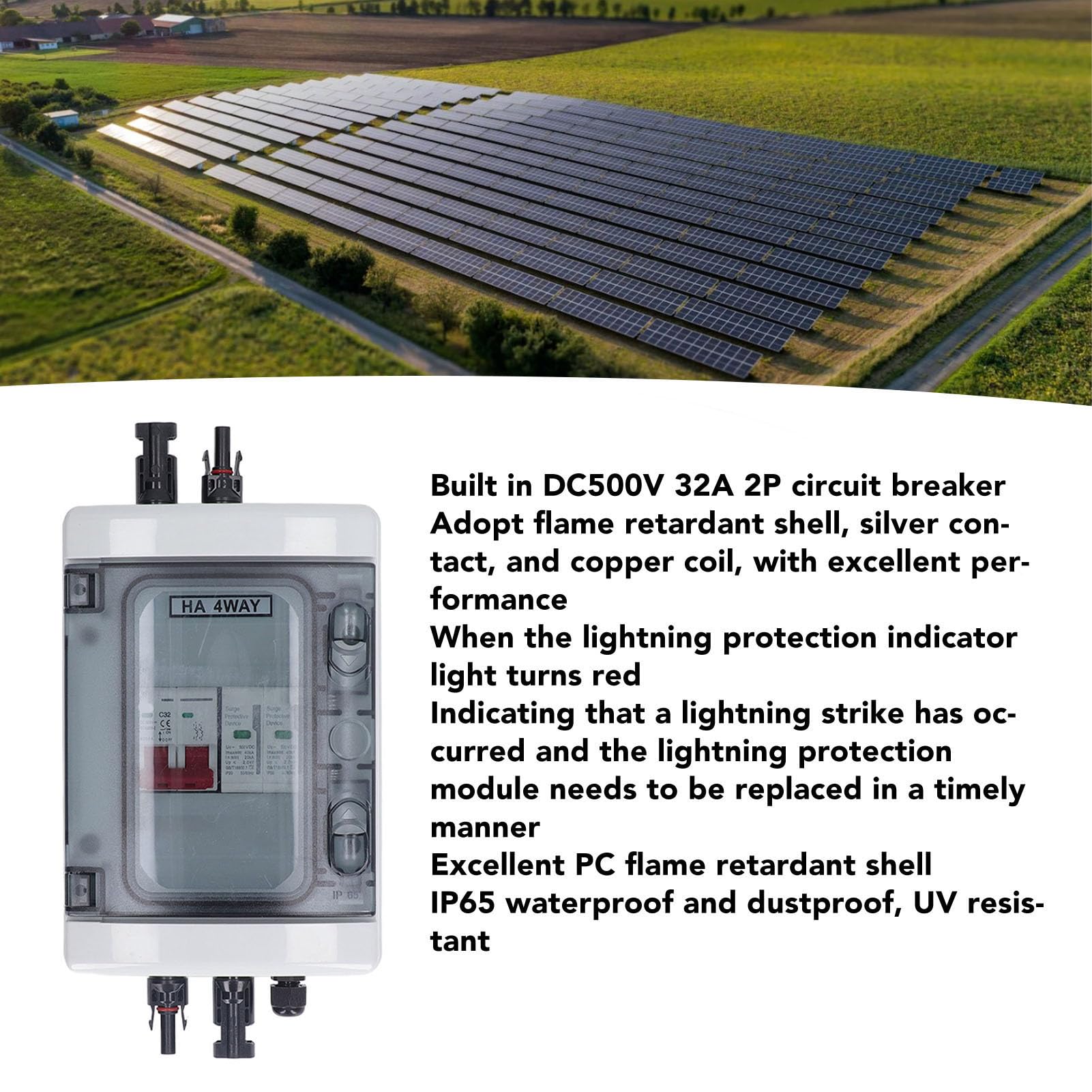

Integrated Circuit Breaker with Advanced Components The PV combiner box incorporates a DC500V 32A 2P circuit breaker, featuring a flame-retardant casing, silver contacts, and copper coils, which collectively ensure superior electrical performance and safety.
Enhanced Surge Protection Mechanism Solar combiner box equipped with a DC500V surge protector rated at 20 to 40kA, it utilizes standard lightning protection chips over varistors, delivering robust and reliable surge protection to safeguard connected systems.

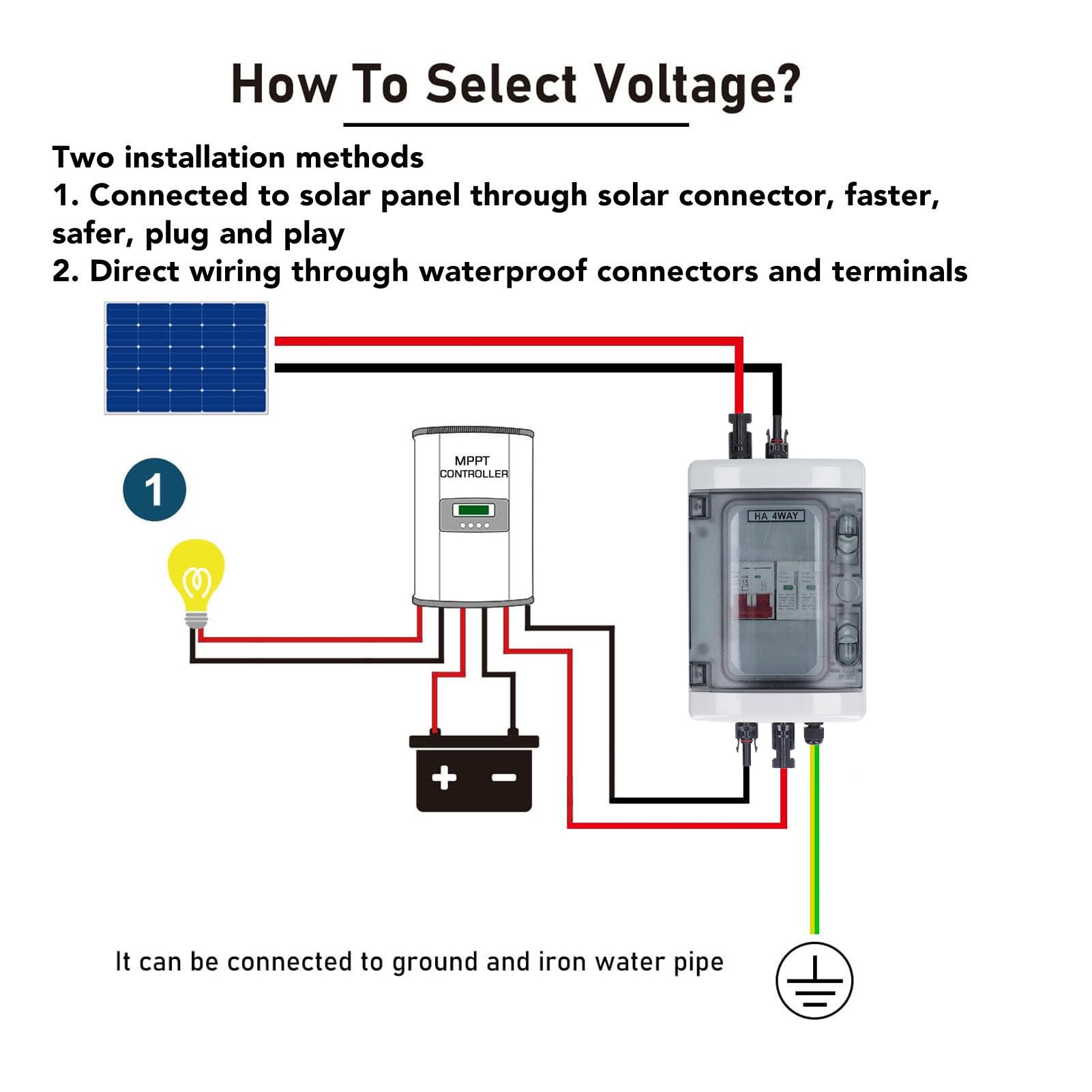

Flexible Installation Options Surge protection combiner box offers two installation methods – either through solar connectors for a quick and secure attachment to solar panels, or direct wiring using waterproof connectors and terminals, providing adaptability to various installation scenarios.
Solar Applications Photovoltaic combiner box is suitable for deployment in both grid-connected and off-grid photovoltaic systems, including solar power setups, photovoltaic arrays, and RV solar solutions, making it a versatile component for diverse solar energy configurations.
Material PV Circuit breaker constructed from PC flame-retardant material, the combiner box is protected against water and dust with an IP65 rating. It also includes a UV-resistant transparent window for convenient visual inspections, enhancing user safety and maintenance.
